VG 95218 Navy Cables
LMGSGO Light Weight Ships Power Cables acc. to VG 95218 part 61

Application

These cables are designed for fixed installation in electrial power and control systems below and above deck, preferably on ships of the German Navy and/or German design of construction. Not intended for permanent installation in or under water. Fulfill all requirements of BV3400 (Specification for Construction of German Navy vessels) for light power degaussing- and Navy cables with improved characterstics in case of fire.

Standards

VG 95218-61
VG 95218-2
IEC 60228
DIN VDE 0207-20(VDE 0207 part 20)

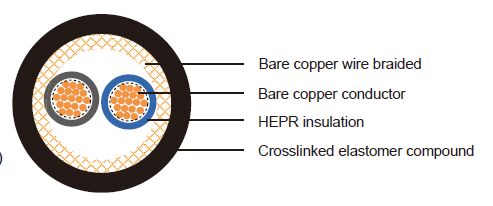

Construction

Conductor: Bare copper conductor, stranded class 2
Insulation: HEPR
Screen: Bare copper wire braided screen, separator tape (optional)
Sheath:Crosslinked elastomer compound,black.

Core Identification

- 1C : Black
- 2C : Black, Blue
- 3C : Black, Blue, Brown
- 4C : Black, Blue, Brown, Black
- More than 5C: Printing a number on black insulations

Electrical and mechanical characteristics

Nominal Voltage： Uo/U =500/500V
Max. operating voltage： AC 550 V DC 825 V
Operating temperature at conductor： + 85 °C

Dimensions and Weight

LMGSGO Type A

Nomenclature acc. VG 95218 Part 61 Type/Part No.	Number of cores and nominal cross section mm²	Nominal Diameter of conductor mm	Nominal insulation thickness	Nominal sheath thickness mm	Outer diameters min. /max. mm		Cable Weight kg/km
A001	2x1.5	1.7	0.4	0.8	7.0	7.8	95
A002	3x1.5	1.7	0.4	0.8	7.2	8.2	115
A102	3G1.5	1.7	0.4	0.8	7.2	8.2	115
A003	4x1.5	1.7	0.4	0.8	7.8	9.2	140
A004	5x1.5	1.7	0.4	0.8	8.3	9.3	160
A104	5G1.5	1.7	0.4	0.8	8.3	9.3	160
A005	7x1.5	1.7	0.4	1.0	9.3	10.3	210
A105	7G1.5	1.7	0.4	1.0	9.3	10.3	210
A006	10x1.5	1.7	0.4	1.0	10.8	12.2	280
A106	10G1.5	1.7	0.4	1.0	10.8	12.2	280
A007	12x1.5	1.7	0.4	1.0	12.0	13.3	315
A008	14x1.5	1.7	0.4	1.0	12.7	14.0	373
A009	16x1.5	1.7	0.4	1.0	13.2	14.6	395
A010	19x1.5	1.7	0.4	1.0	13.9	14.7	470
A011	24x1.5	1.7	0.4	1.0	15.5	17.2	590
A012	27x1.5	1.7	0.4	1.0	16.6	18.1	640
A013	33x1.5	1.7	0.4	1.0	17.5	19.5	785
A018	37x1.5	1.7	0.4	1.0	20.0	22.0	860
A014	2x2.5	2.2	0.4	0.8	7.7	8.6	125
A015	3x2.5	2.2	0.4	0.8	8.0	9.2	148
A115	3G2.5	2.2	0.4	0.8	8.0	9.2	148
A016	4x2.5	2.2	0.4	0.8	8.7	10.2	195
A017	7x2.5	2.2	0.4	1.0	10.3	11.7	290

NOTE: G type with green-yellow core
